Feature Preview: The Smart Sketch Healer (HSKETCH) is a CMS tool that automatically identifies and repairs 2D drafting errors, such as gaps and duplicate lines. It improves file efficiency for cad software, survey, and CNC workflows by offering visual error previews, customization tolerance settings, and a fast, one-step undo feature. This tool operates on-demand to maintain optimal performance without altering complex 3D geometry. This news about this new exclusive CMS IntelliCAD tool will be available soon for v15 licensed users.
Listen to our podcast on Spotify to learn more about it.
Smart Sketch Healer (HSKETCH) Overview
Introducing the Smart Sketch Healer, Command: HSKETCH, a new on-demand CAD Software tool that detects and repairs microscopic drafting errors in 2D CAD software drawings in seconds. Moreover, it integrates with cad software to streamline quality checks. It uses on-demand automated checks to reduce rework and speed up design reviews.
Designed for rapid deployment in busy workflows, it runs locally or in the cloud and supports common drafting standards. The tool pinpoints errors at the micro-detail level, allowing designers to correct them before they become visible to stakeholders. By reducing manual checks, teams can shorten cycles, cut costs, and deliver cleaner drawings with confidence.
- Smart Gap Closure: Instantly finds endpoints of lines, arcs, and polylines that are almost touching and snaps them together based on a custom tolerance to prevent broken hatch boundaries.
- Automatic Duplicate Removal: Merges stacked, overlapping, or collinear lines to reduce file sizes and ensure clean paths for, e.g., CNC and CAM operations or Surveying data.

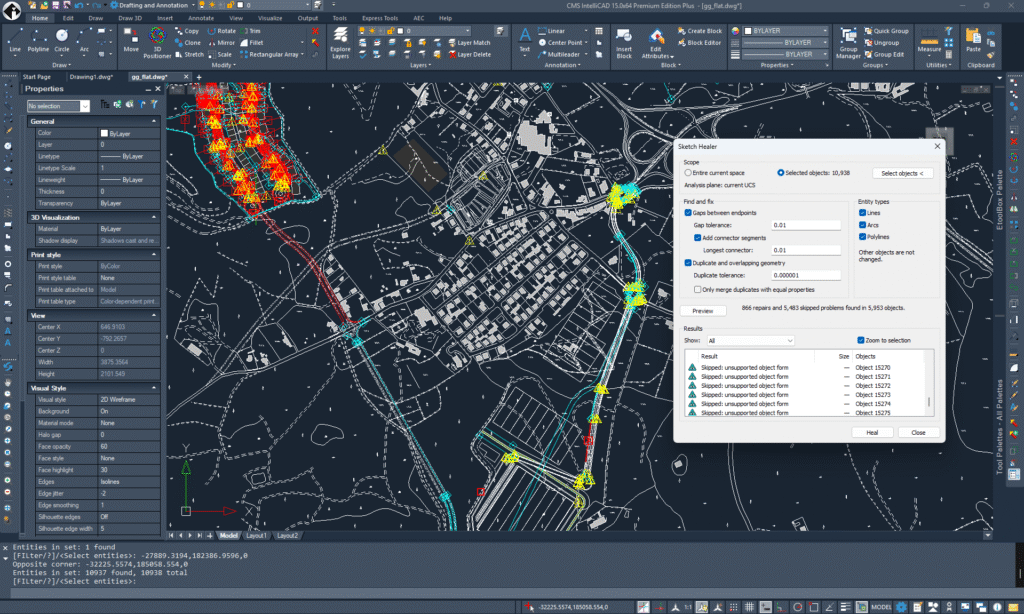

- Visual Preview & Control: Highlights detected errors on your screen before making permanent changes, giving you full control over gap tolerances and target selections.
- Lightning-Fast & Safe: Uses background spatial indexing for fast processing on complex assemblies, backed by a simple one-step Undo (
Ctrl+Z) if needed.
Note: The tool operates exclusively on 2D wireframes on-demand to preserve system performance.
